Frozen van refrigeration DZD200
33 Items in Stock

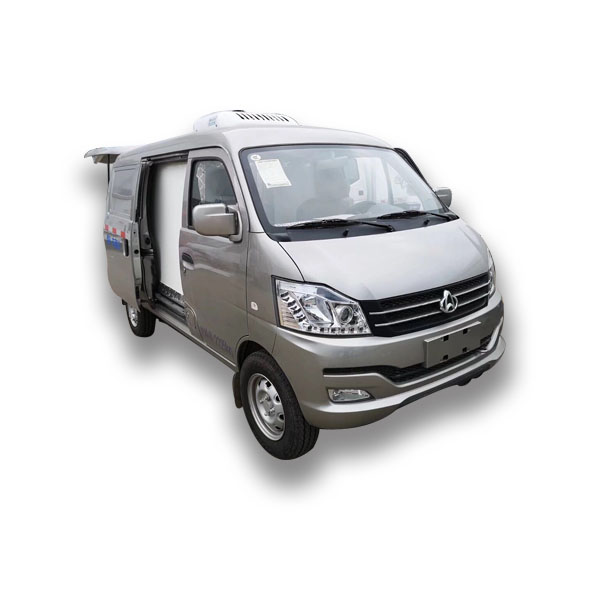

Thermo van refrigeration unit DZD200

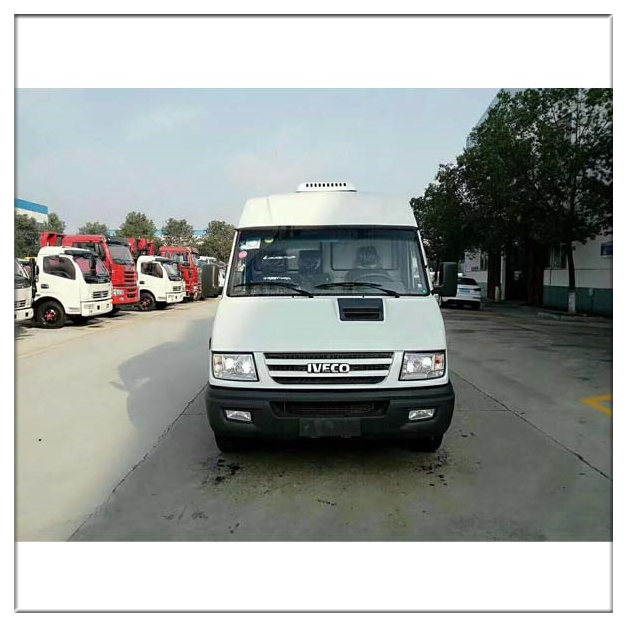

Description:- The DZD200 cargo van refrigeration is rooftop system
- The vehicle freezer unit is driven by engine.
- The slim design is fashion and saves space.
- Quick cooling is the most important characteristics.
| Model | DZD200 | |
| Applicable Temperature | -18℃~+15℃ | |
| Cooling capacity |
2200W（0℃） 1110W（-18℃） |
|
| Drive model | non-independent engine driven | |
| Voltage DC (V) | 12V/24V | |

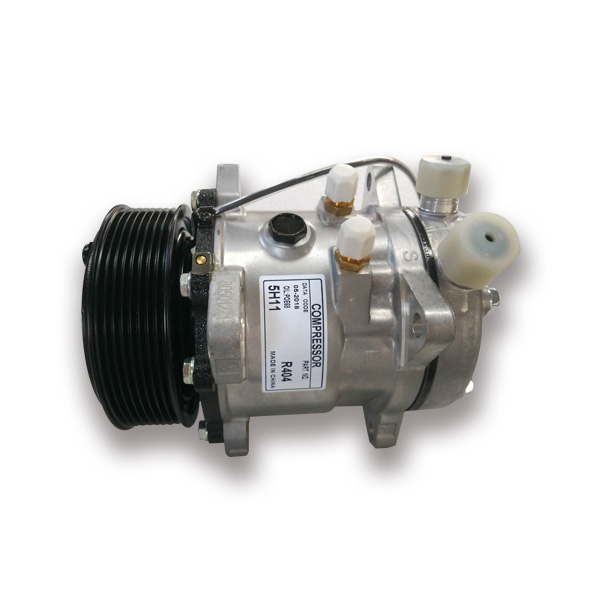

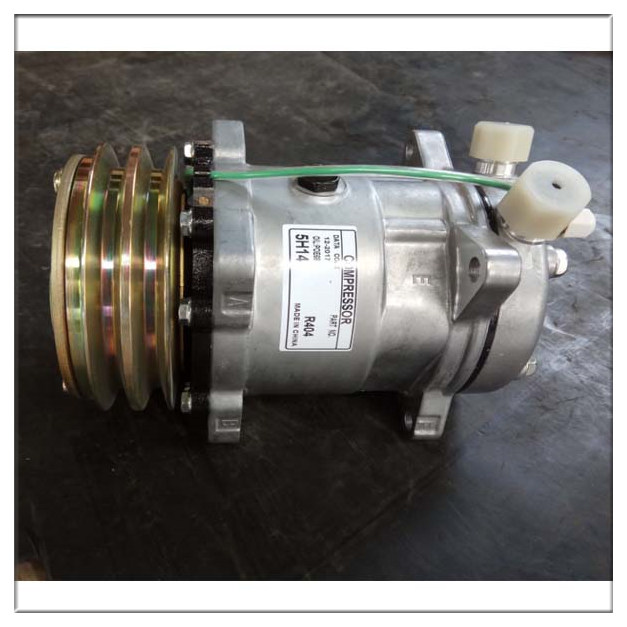

| Compressor | 5H14 | |
| Refrigerant | R404A | |
| Refrigerant charge | 0.8~0.9Kg | |
| Defrosting |
Hot gas defrosts automatically (manually optional) |
|
| Dimensions (mm) | Evaporator | 610×550×175 |
| Condenser | 700×700×190 | |
| Weight(KG) | Evaporator | 13.5 |
| Condenser | 15 | |
| Box volume(m3) |
7（-18℃） 11（0℃） |
|

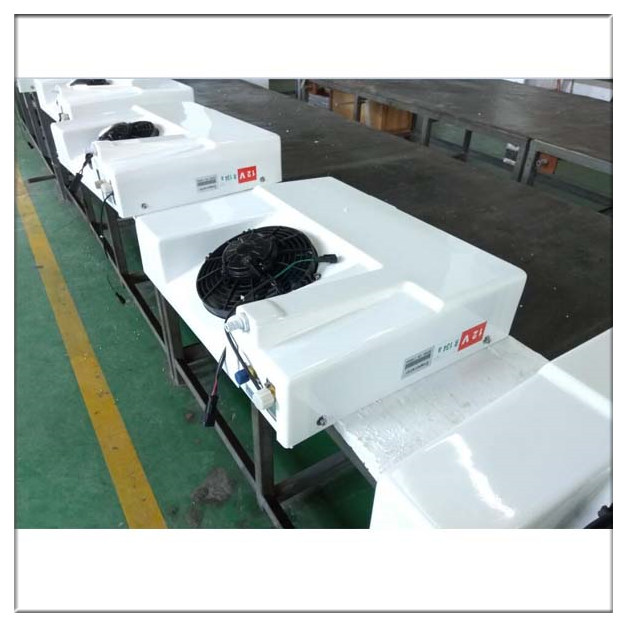

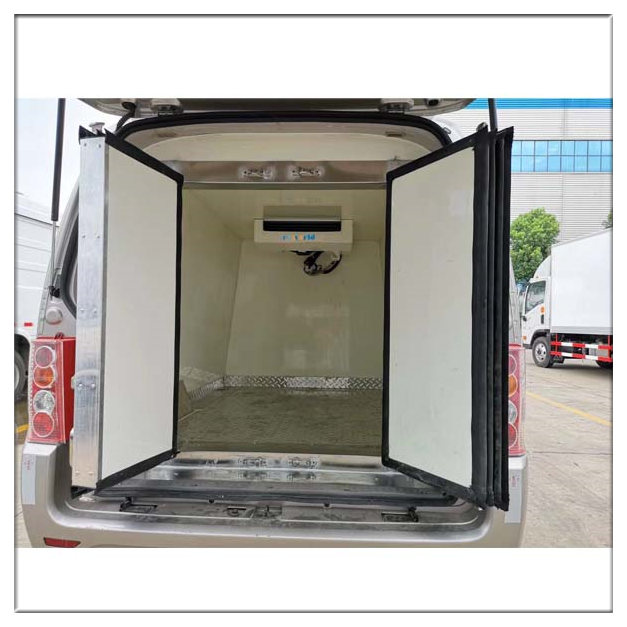

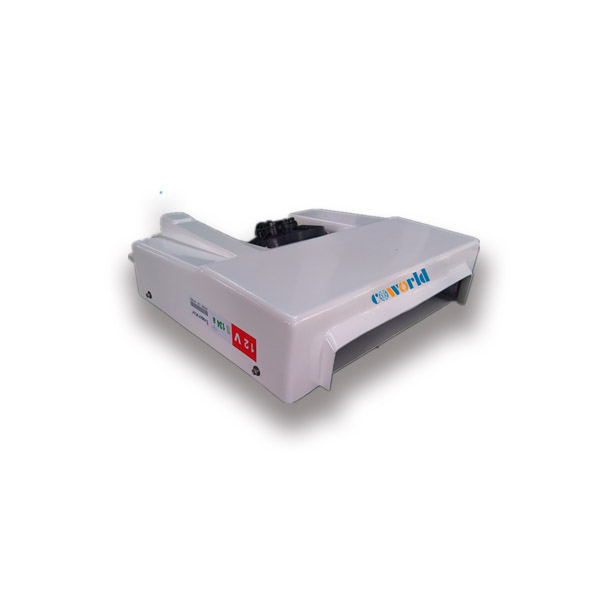

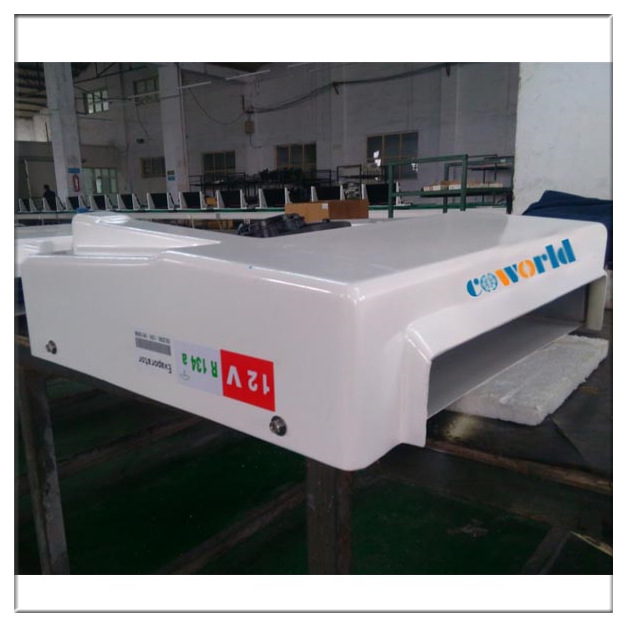

Evaporator 610×550×175 (mm)

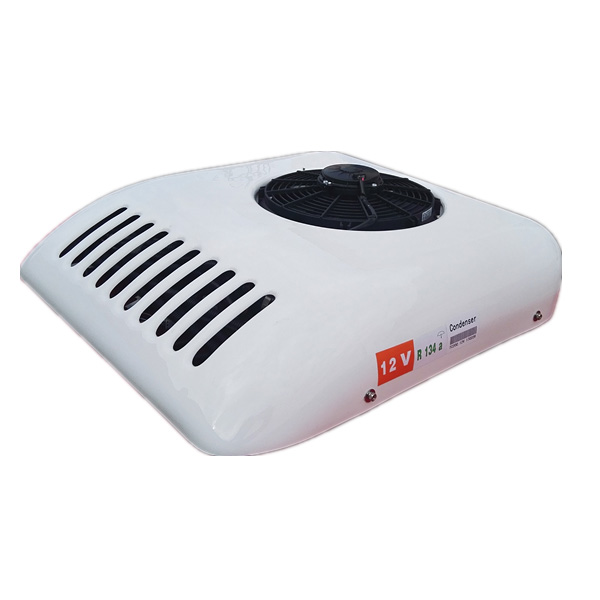

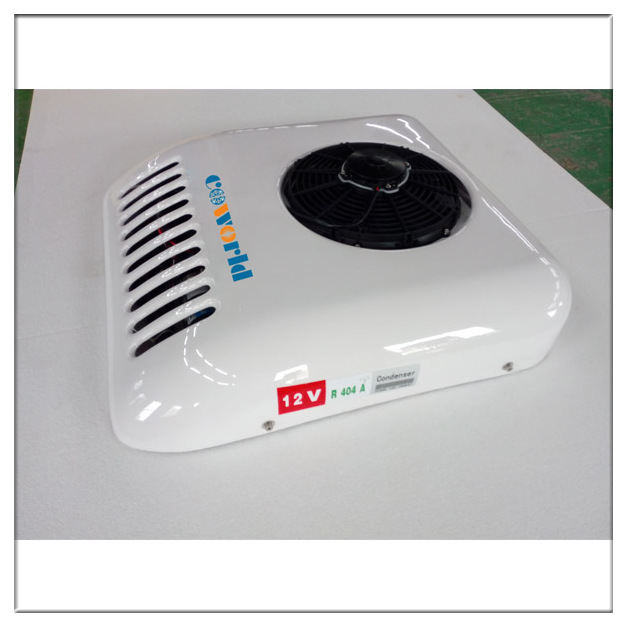

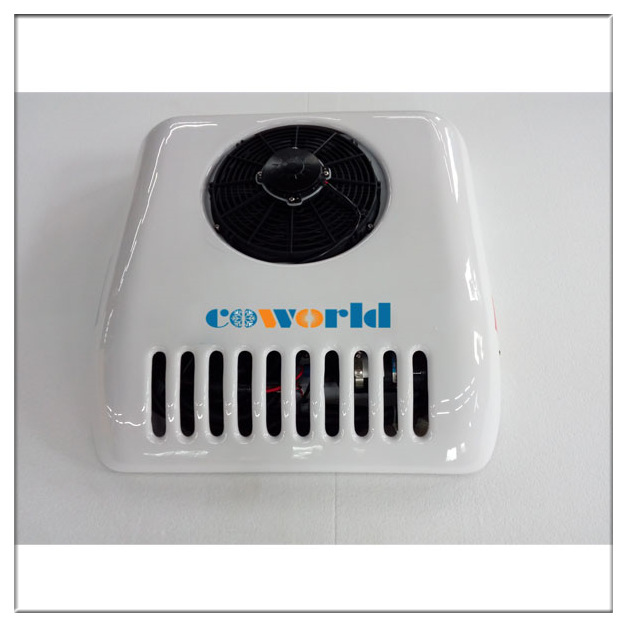

Condenser 700×700×190 (mm)
Package:
In wooden case and carton
Optional:
- Standby system: If you want to plug in AC220V/380V power when the engine stops, we have standby system to option.
- Heating: If it is too cold in your country when winter, we can also add heating function for you.
After-sale:
The warranty period is 12 months. If the part is broken in 12 months, we will send the new part to you for free.
