QZD1000
Engine driven
Front mounted
-18℃~20℃
JS32
R404a

Transport engine driven refrigeration QZD1000

Description

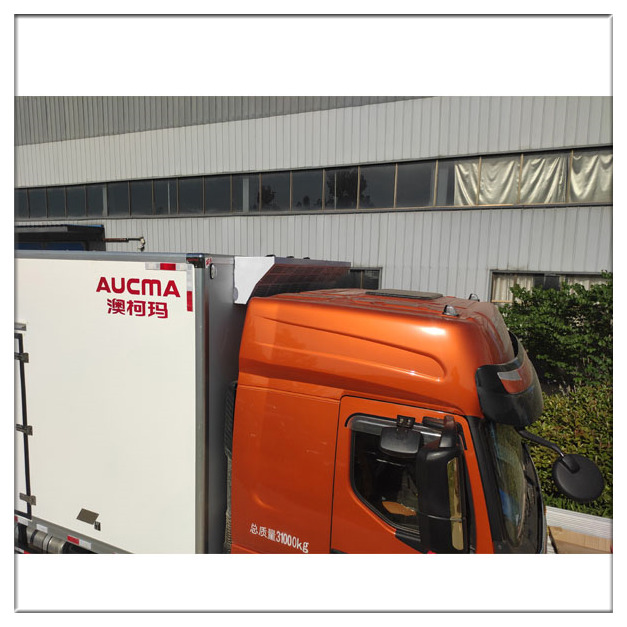

  • The QZD1000 transport chiller is a front mounted system.
  • The truck freezer is driven by engine directly.
  • The special slim design of transport cooling unit is for the truck which has no enough space between roof of cabin and box.
  • Quick cooling, easy to install are what attract customers very much.
Specification


Model QZD1000
Temperature -18~20
Box M3 48~56
Cooling capacity 0℃ W 9050
-18℃ 5300
Refrigerant R404A
Defrosting Hot gas

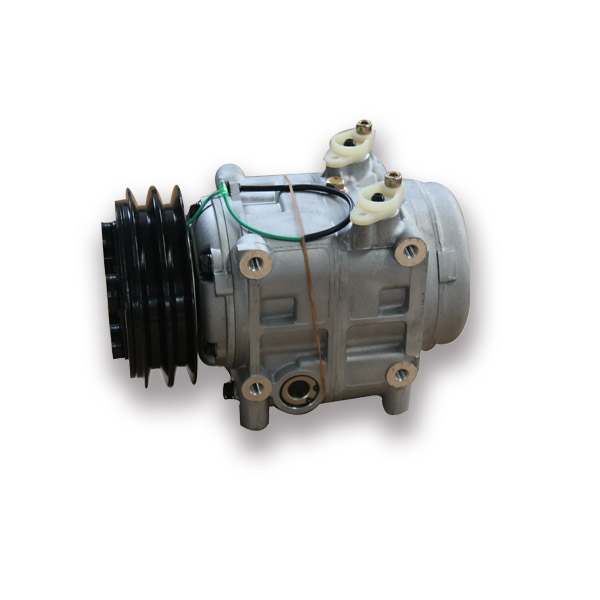

Compressor CC 313

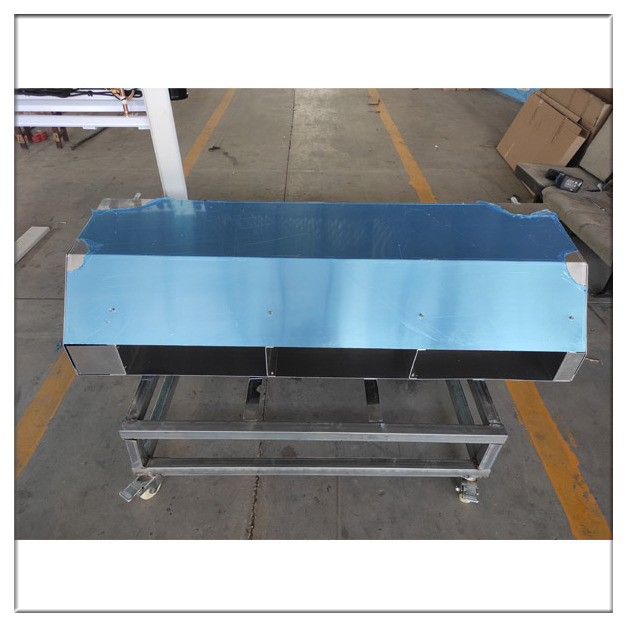

Evaporator Coil Copper tube and fin
Weight KGS 42

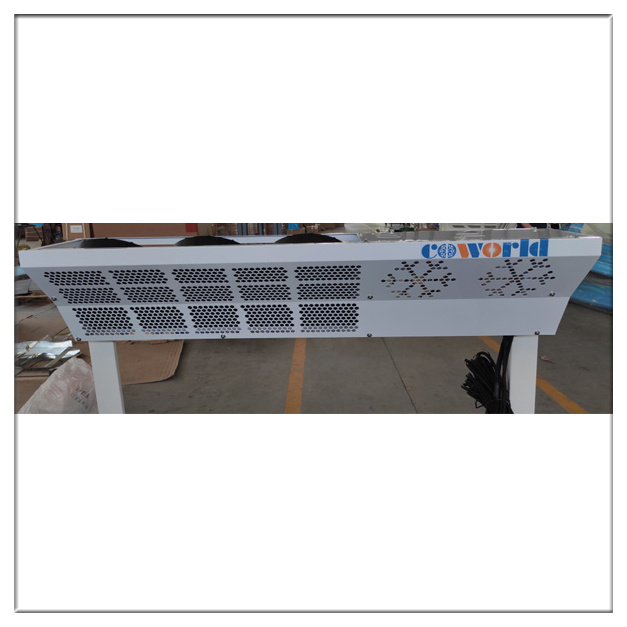

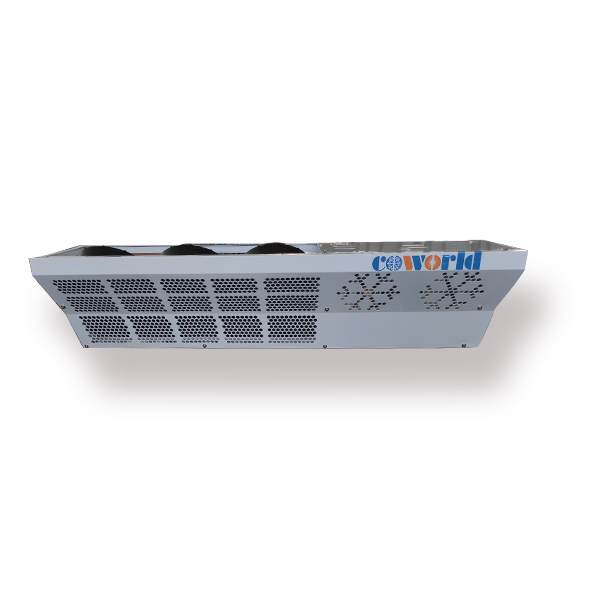

Condenser Coil Parallel flow
Weight KGS 67

Dimension

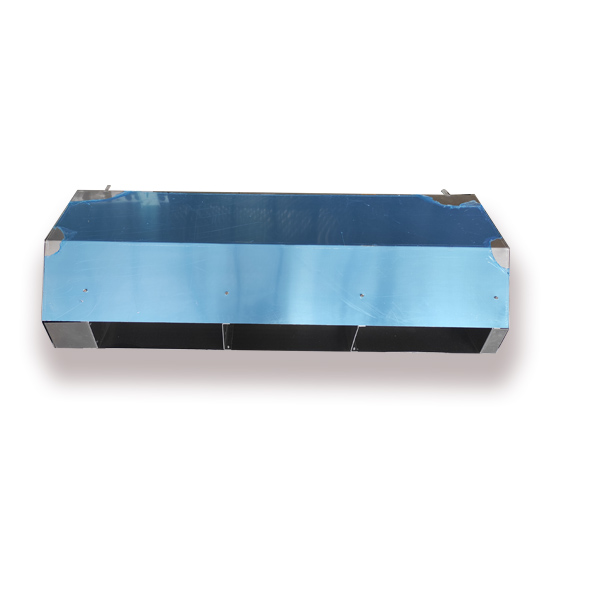

Evaporator     1520×355×580(mm)

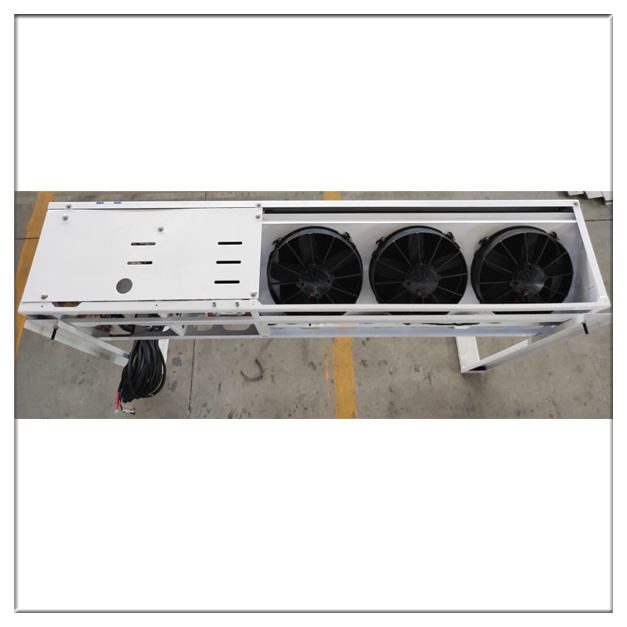

Condenser     1840×865×210(mm)

Package

In wooden case and carton

Optional

  • Standby system: If you want to plug in AC220V/380V power when the engine stops, we have standby system to option.
  • Heating: If it is too cold in your country when winter, we can also add heating function for you.

Others






After-sale

The warranty period is 12 months. If the part is broken in 12 months, we will send the new part to you for free.
