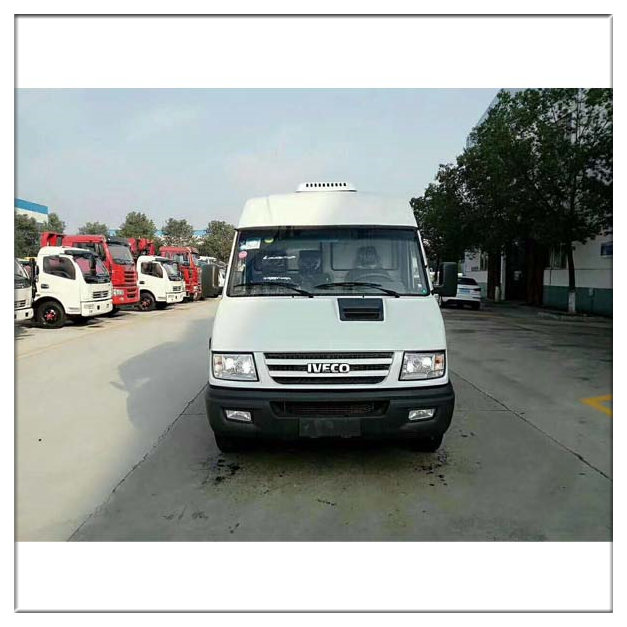

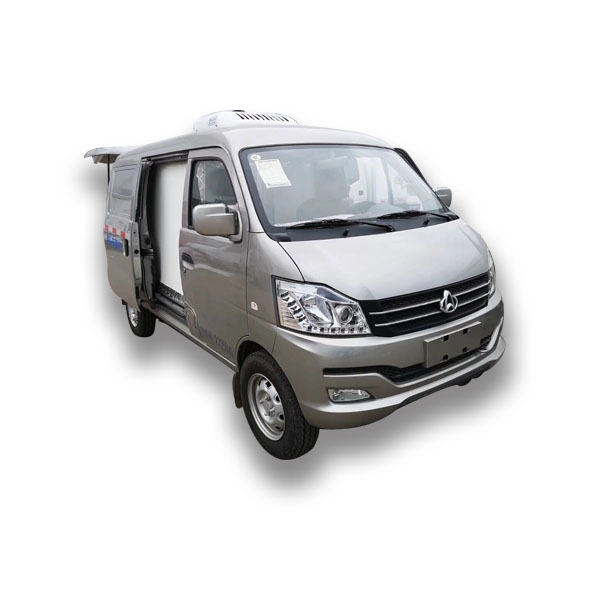

Roof mounted van refrigeration unit DZX200
Description:The DZX200 van refrigeration is rooftop system, it is driven by engine. The slim design is fashion and saves space. Quick cooling is the most important characteristics.
Specification:
Model | DZX200 | |
Applicable Temperature | -5℃~+15℃ | |
Cooling capacity | 1700W(0℃) | |
Drive model | non-independent engine driven | |
Voltage DC (V) | 12V/24V | |

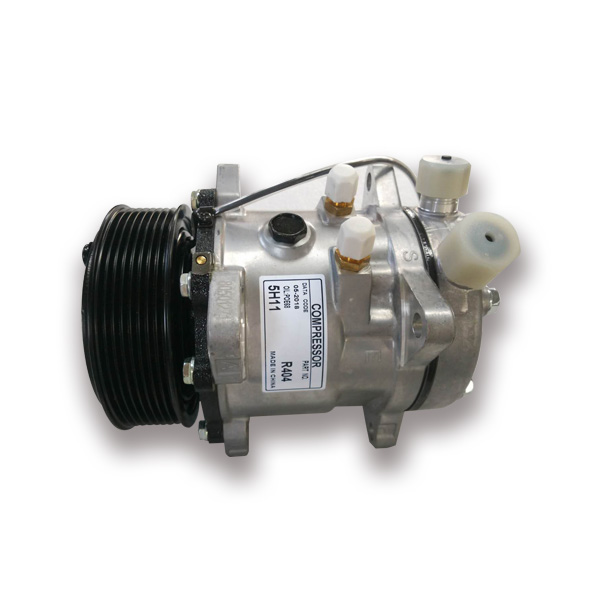

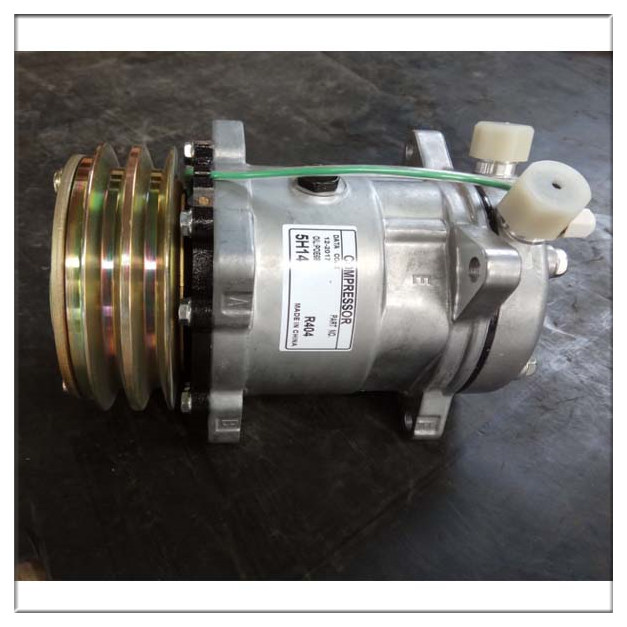

Compressor | 5H11 | |
Refrigerant | R134A | |
Refrigerant charge | 0.8~0.9Kg | |
Dimensions (mm) | Evaporator | 610×550×175 |
Condenser | 700×700×190 | |
Weight(KG) | Evaporator | 13 |
Condenser | 14.5 | |
Box volume(m3) | 7(0℃) |

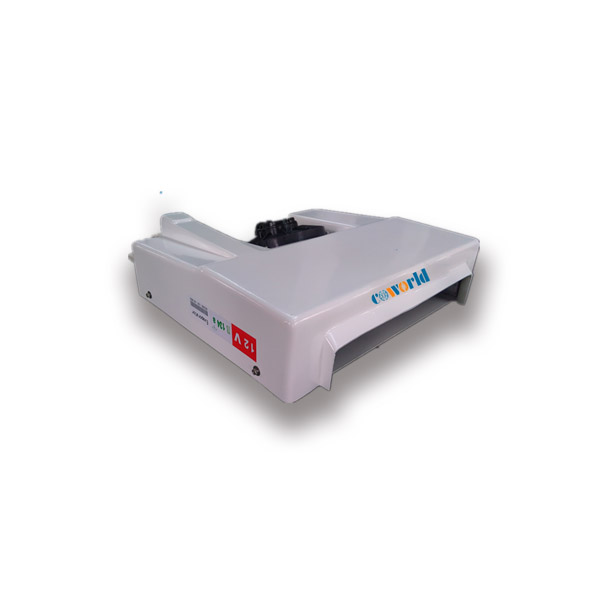

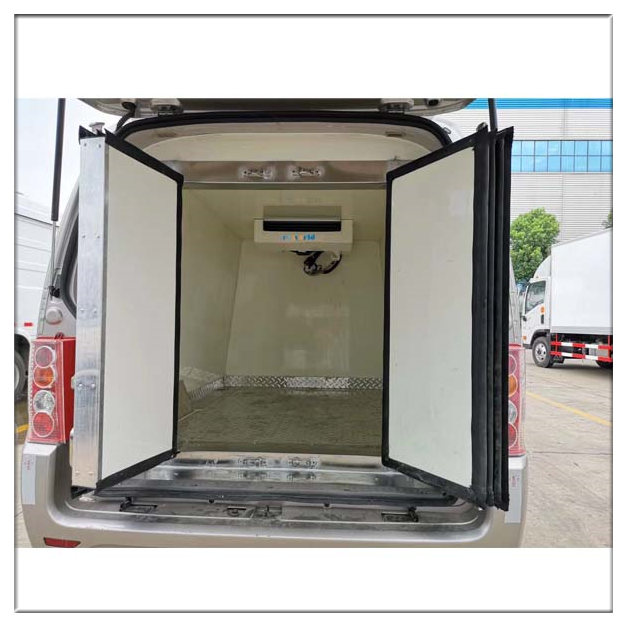

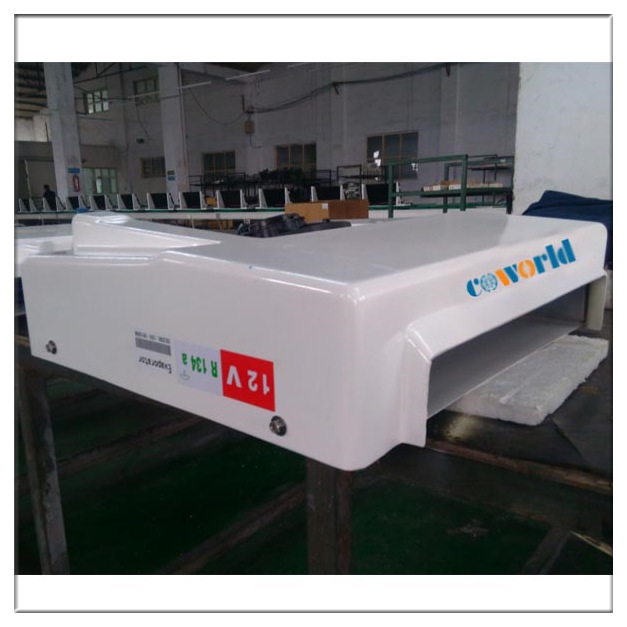

Evaporator 610×550×175 (mm)

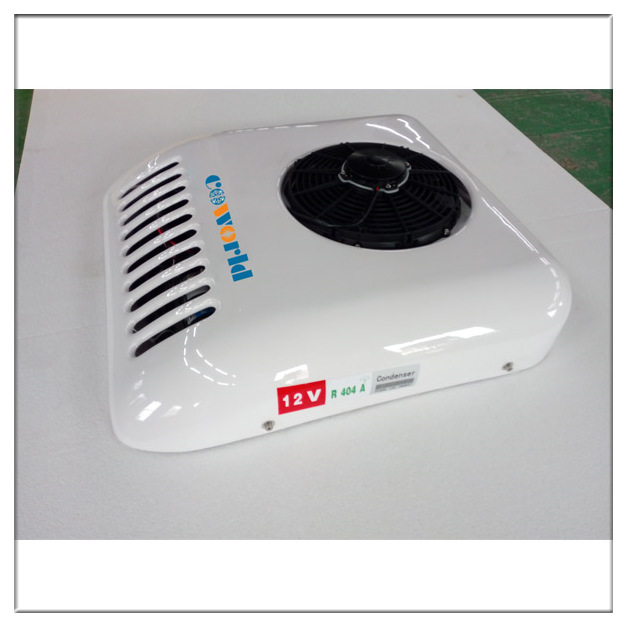

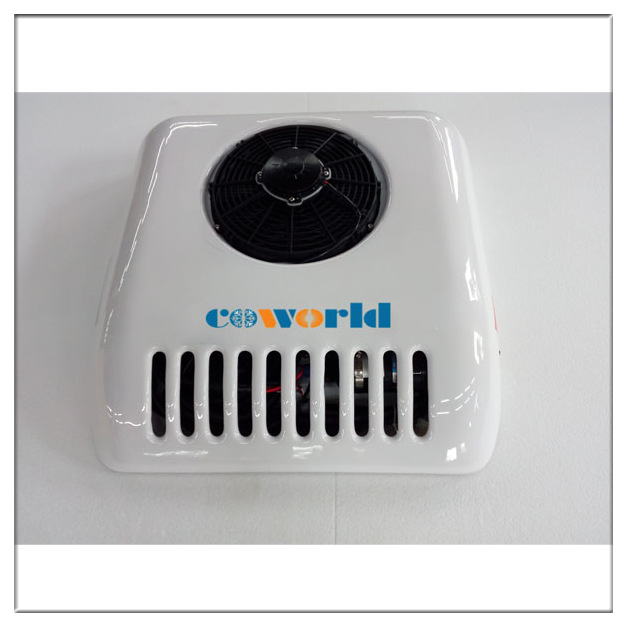

Condenser 700×700×190 (mm)
Package:
In wooden case and carton
Optional:
- Standby system: If you want to plug in AC220V/380V power when the engine stops, we have standby system to option.
- Heating: If it is too cold in your country when winter, we can also add heating function for you.
After-sale:
The warranty period is 12 months. If the part is broken in 12 months, we will send the new part to you for free.
