Fresh truck refrigeration QZX300
33 Items in Stock
QZX300
Engine driven
Front mounted
-5℃~+15℃
5H14
R134a
Engine driven
Front mounted
-5℃~+15℃
5H14
R134a

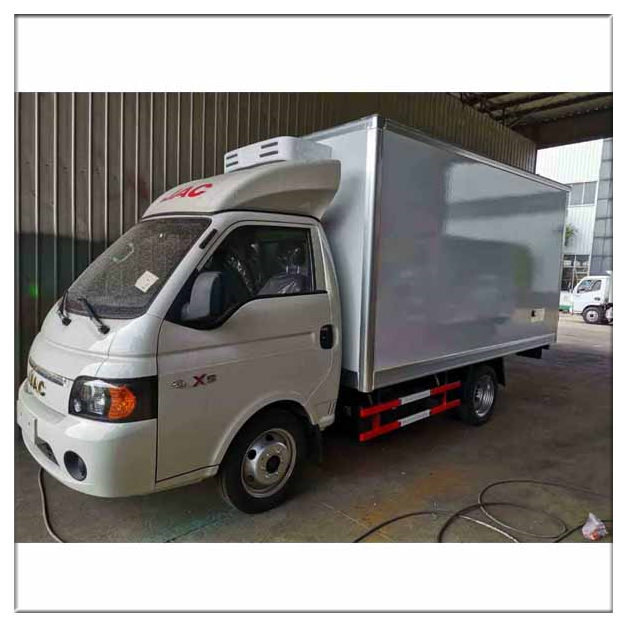

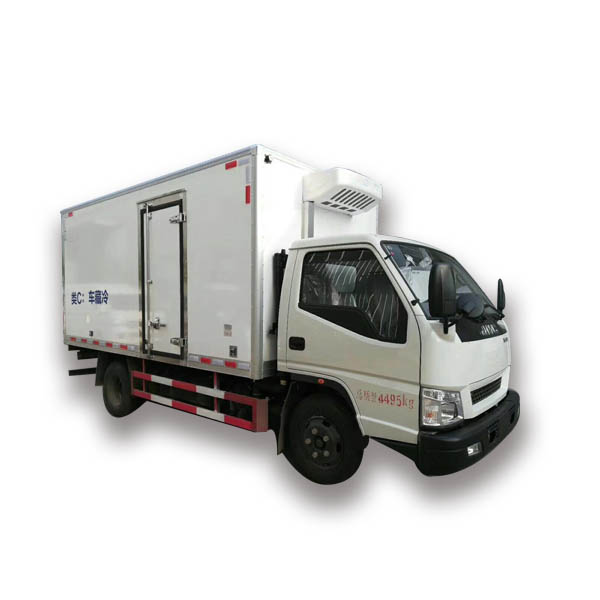

Front mounted refrigeration unit for truck QZX300
Description:- The QZX300 truck chiller is front mounted system.
- The transport refrigerator is driven by engine directly
- The stream line design of truck cooling unit is a bright point.
- Quick cooling, easy to install are what attract customers very much
| Model | QZX300 | |
| Applicable Temperature | -5℃~+15℃(Fresh) | |
| Cooling capacity | 2700W（0℃） | |
| Drive model | non-independent engine driven | |
| Voltage DC (V) | 12V/24V | |

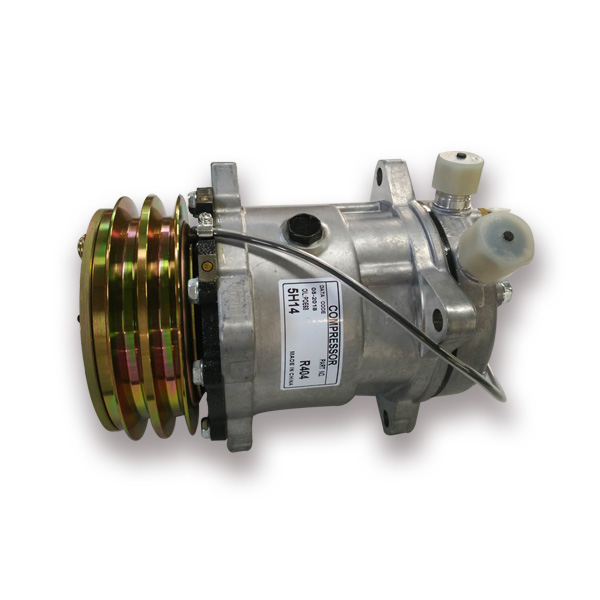

| Compressor | 5H14(138 cc/r) | |
| Refrigerant | R134a | |
| Refrigerant charge | 1.4~1.5Kg | |
| Dimensions (mm) | Evaporator | 850×550×175 |
| Condenser | 925×430×300 | |
| Weight(KG) | Evaporator | 19 |
| Condenser | 20 | |
| Box volume(m3) | 15（0℃） | |

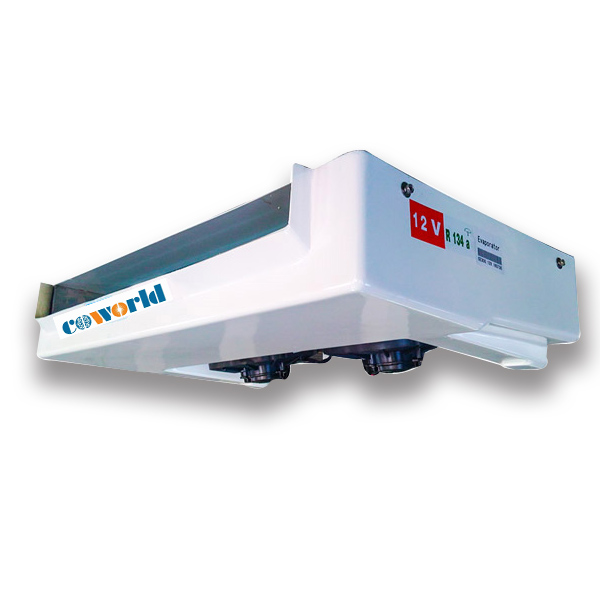

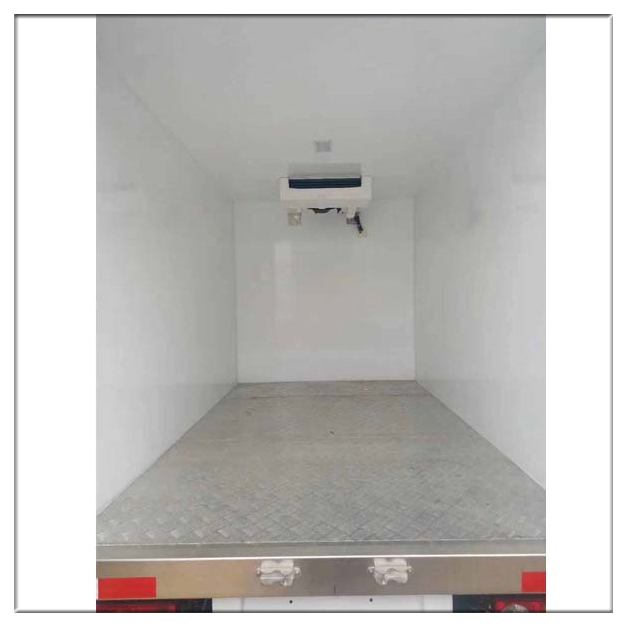

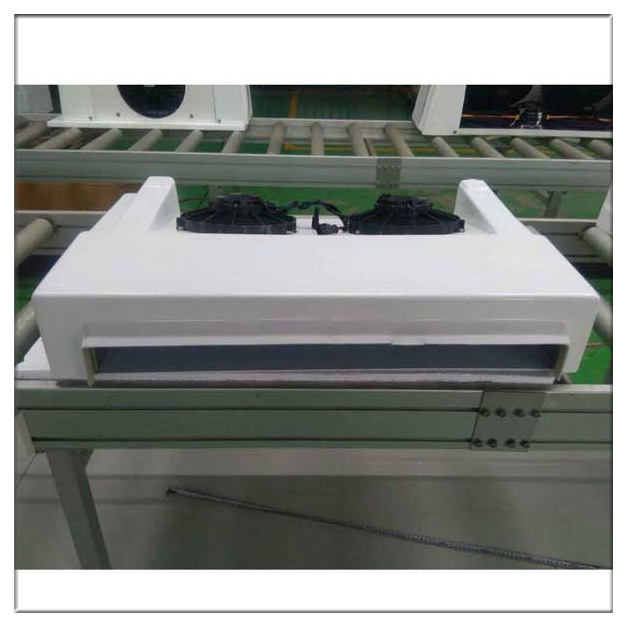

Evaporator 850×550×175(mm)

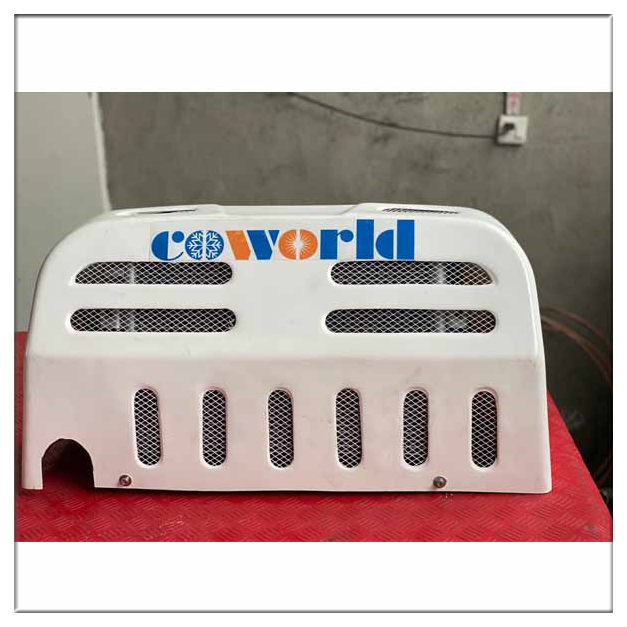

Condenser 925×430×300 (mm)
Package：
In cartons
Optional：
- Standby system: If you want to plug in AC220V/380V power when the engine stops, we have standby system to option.
- Heating: If it is too cold in your country when winter, we can also add heating function for you.
After-sale：
The warranty period is 12 months. If the part is broken in 12 months, we will send the new part to you for free.
