Fresh truck refrigeration QZX200
33 Items in Stock
QZX200
Engine driven
Front mounted
-5℃~+15℃
5H11
R134a
Engine driven
Front mounted
-5℃~+15℃
5H11
R134a
Truck refrigeration unit QZX200
Description:

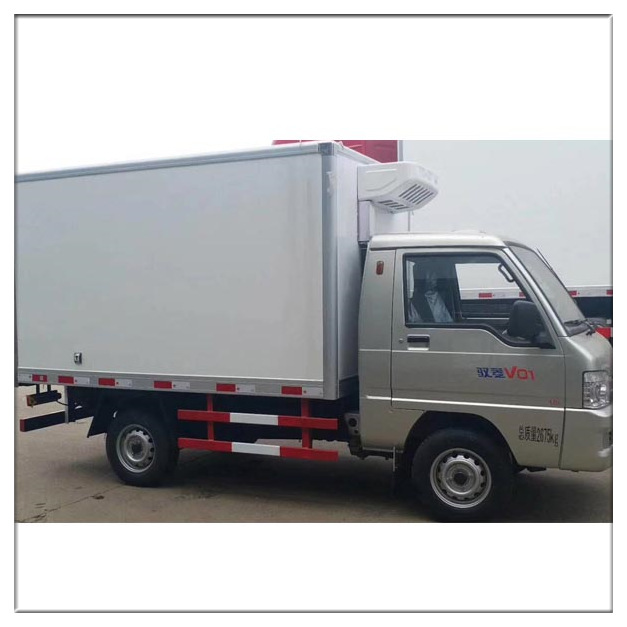

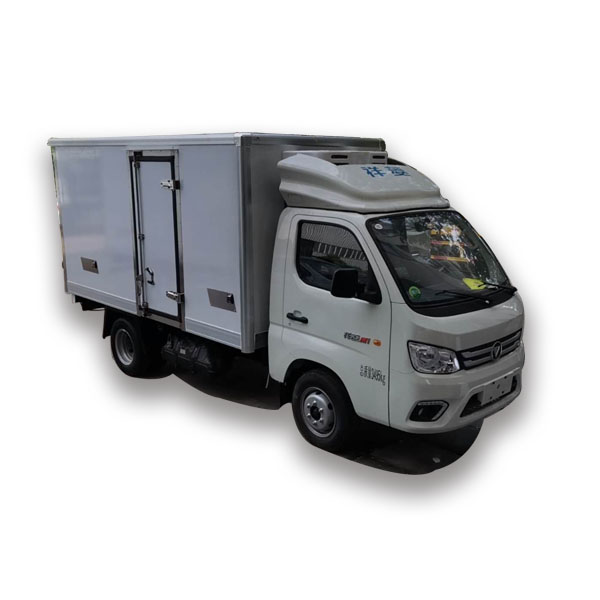

- The QZX200 truck freezer is front mounted system.
- The transport refrigeration is driven by engine directly.
- The stream line design of truck cooling unit is a bright point.
- Quick cooling, easy to install are what attract customers very much.
| Model | QZX200 | |
| Applicable Temperature | -5℃~+15℃(Fresh) | |
| Cooling capacity | 1700W（0℃） | |
| Drive model | non-independent engine driven | |
| Voltage DC (V) | 12V/24V | |

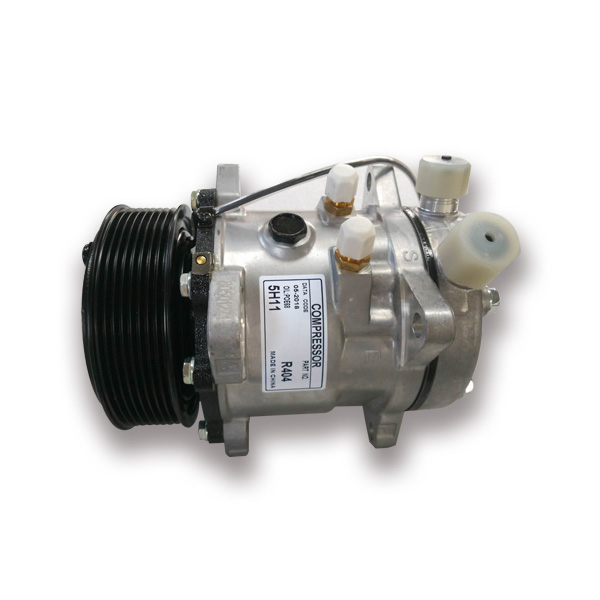

| Compressor | 5H11(108cc/r) | |
| Refrigerant | R134a | |
| Refrigerant charge | 0.8~0.9Kg | |
| Dimensions (mm) | Evaporator | 610×550×175 |
| Condenser | 765×380×290 | |
| Weight(KG) | Evaporator | 13 |
| Condenser | 15 | |
| Box volume(m3) | 10（0℃） | |
Dimension:

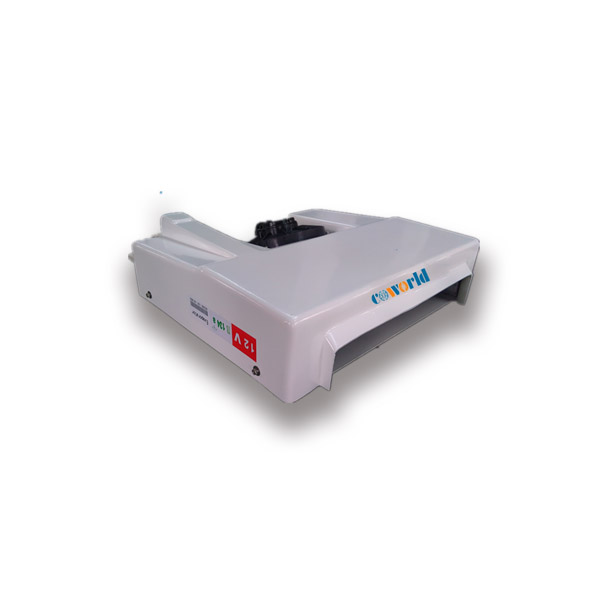

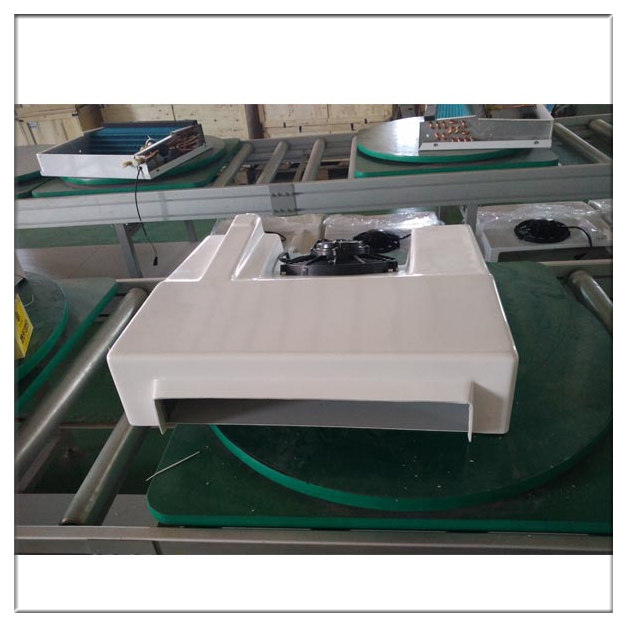

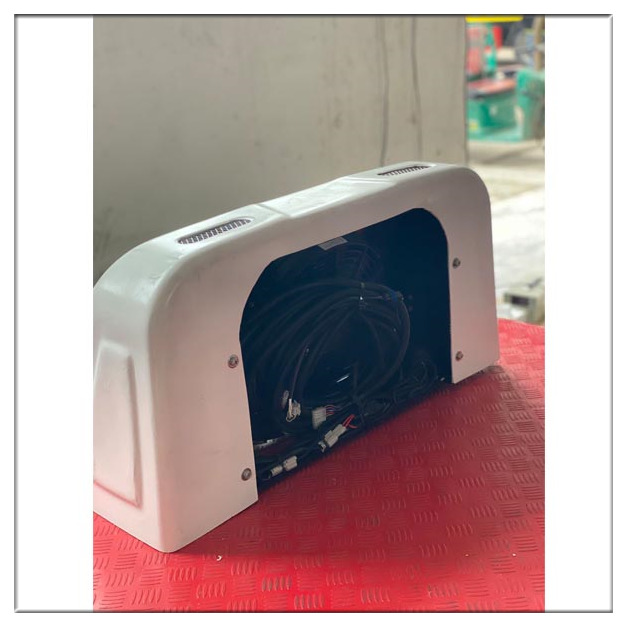

Evaporator 610×550×175 (mm)

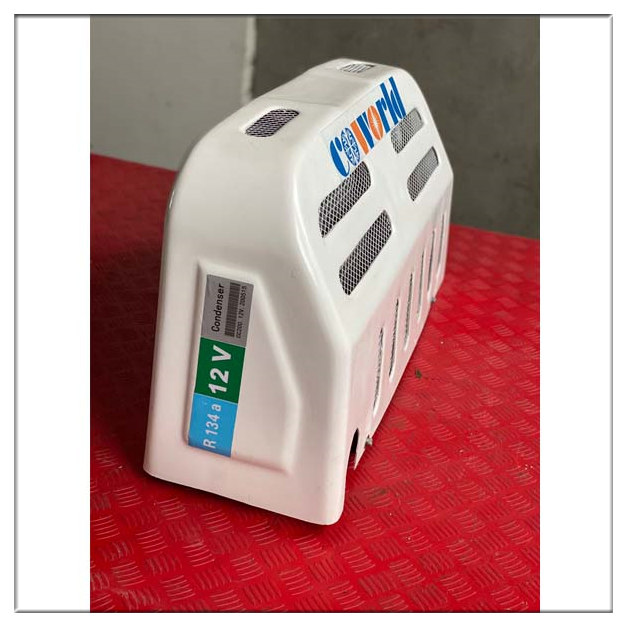

Condenser 765×380×290 (mm)
Package:
In cartons
Optional:
- Standby system: If you want to plug in AC220V/380V power when the engine stops, we have standby system to option.
- Heating: If it is too cold in your country when winter, we can also add heating function for you.
Others:
After-sale:
The warranty period is 12 months. If the part is broken in 12 months, we will send the new part to you for free.
