Frozen electric freezer DZD200D
33 Items in Stock
DZD200D
Battery
Rooftop
-18℃~+15℃
Electric compressor
R404a
Battery
Rooftop
-18℃~+15℃
Electric compressor
R404a
Battery driven van refrigeration system DZD200D
Description:

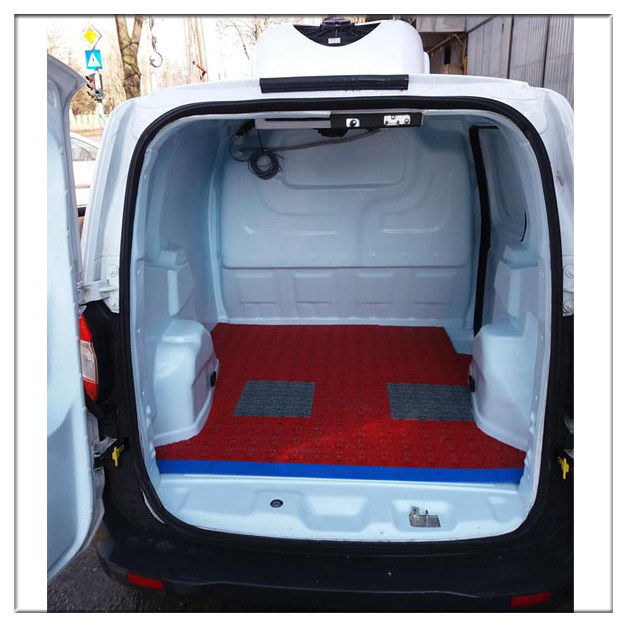

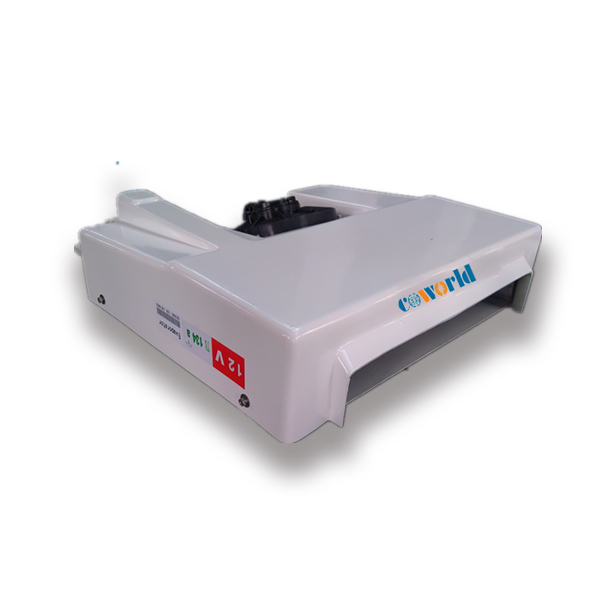

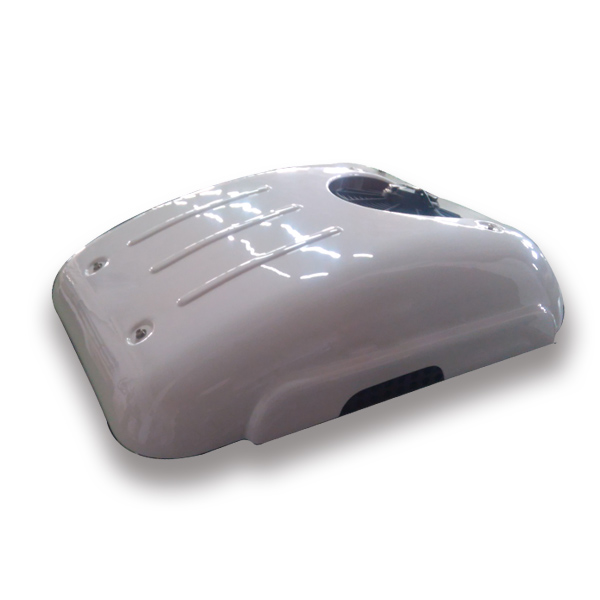

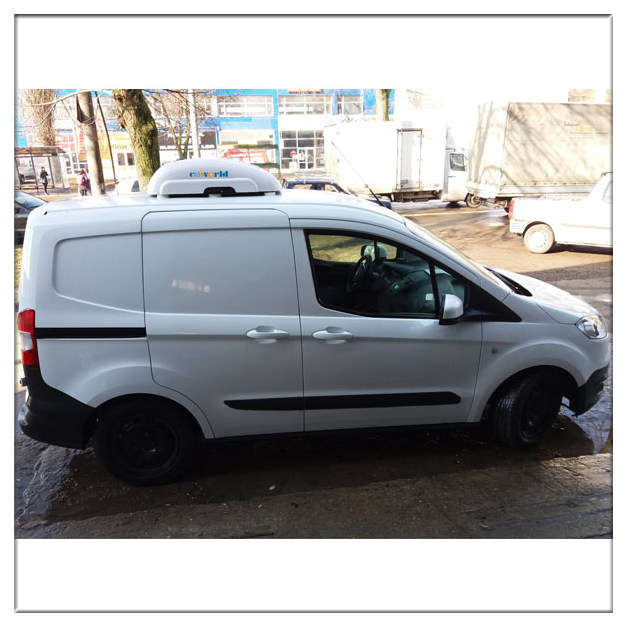

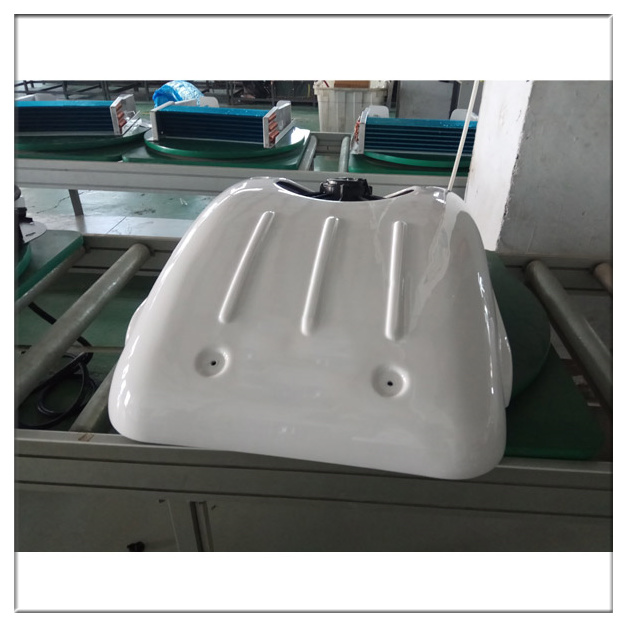

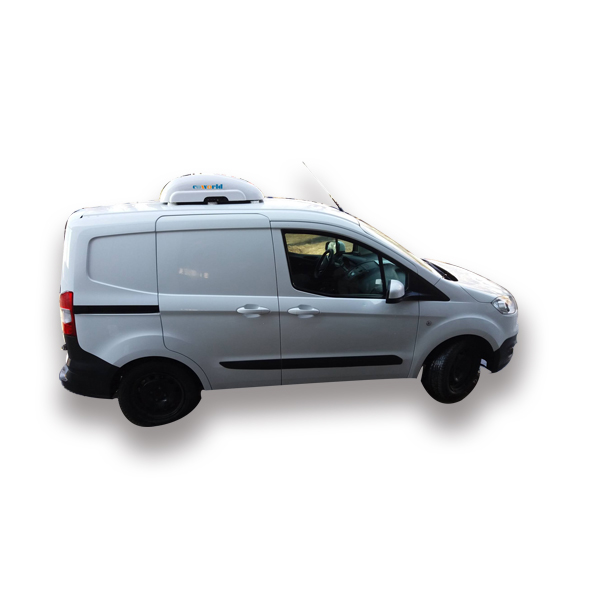

- The DZD200D roof mounted refrigeration is an electric model which is driven by battery directly.
- The DC powered van chiller is green and environmental friendly.
- The stream line design of vehicle freezer is a bright point.
- Quick cooling, easy to install are what attract customers very much.
| Model | DZD200D | |
| Temperature | -18℃～+25℃（Frozen） | |
| Cooling capacity |
2000W（0℃） 950W （-18℃） |
|
| Box’s volume |
3~5 m³（0℃） 2~3 m³（-18℃） |
|
| Voltage | DC12V,24V,48V,60V,72V, | |

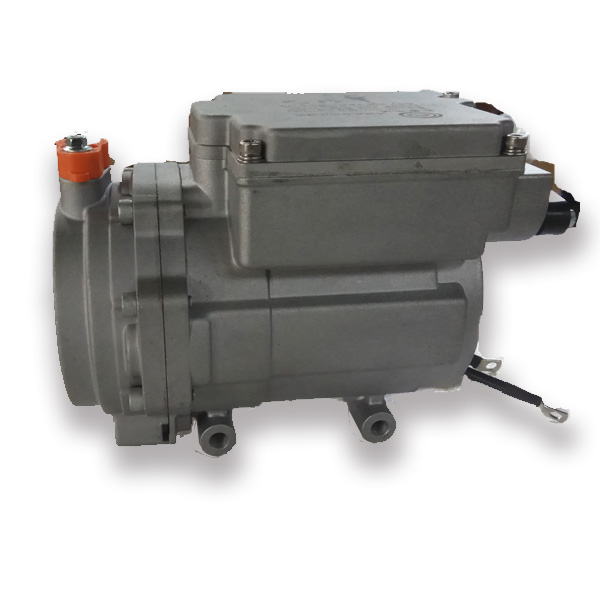

| Compressor | 25 cc/r | |
| Condenser | Model | Parallel flow |
| Fan/Air Flow | 1 Fan, 1100 m3/h | |
| Evaporator | Model | copper pipe & Aluminum Foil fin |
| Blower/Air Flow | 1 Fan, 800 m3/h | |
| Refrigerant | R404a 0.9~1.0Kg | |
| Structure | Vehicle battery driven | |

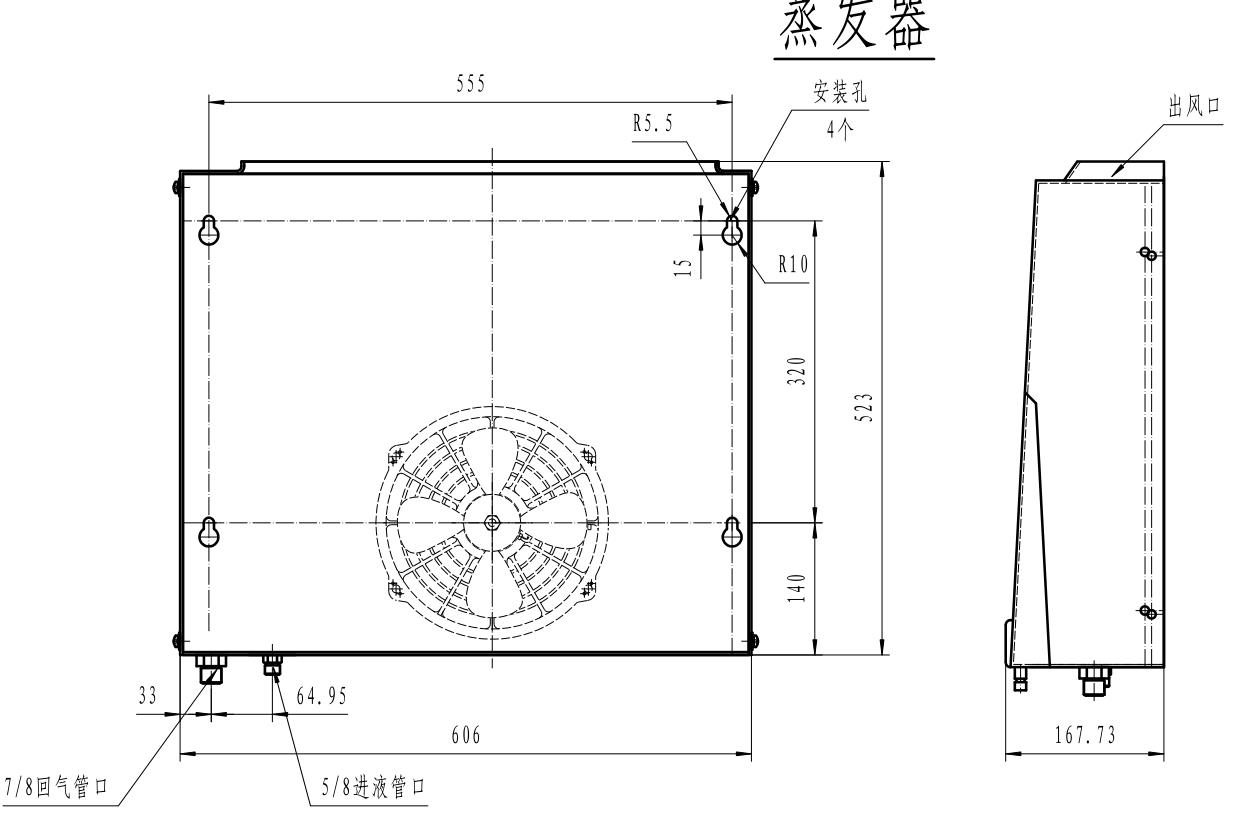

| Dimensions（mm） | Evaporator | 610×550×175 mm |

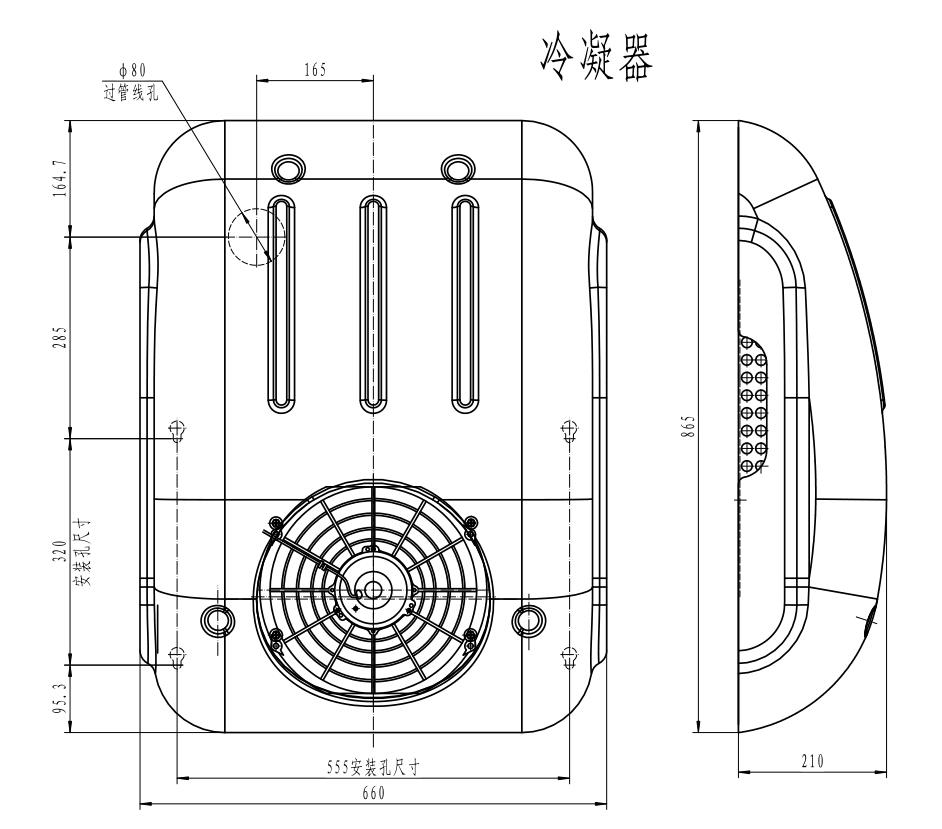

| Condenser | 865×660×210 mm | |
Package:
In wooden case and carton
Others:
After-sale:
The warranty period is 12 months. If the part is broken in 12 months, we will send the new part to you for free.
